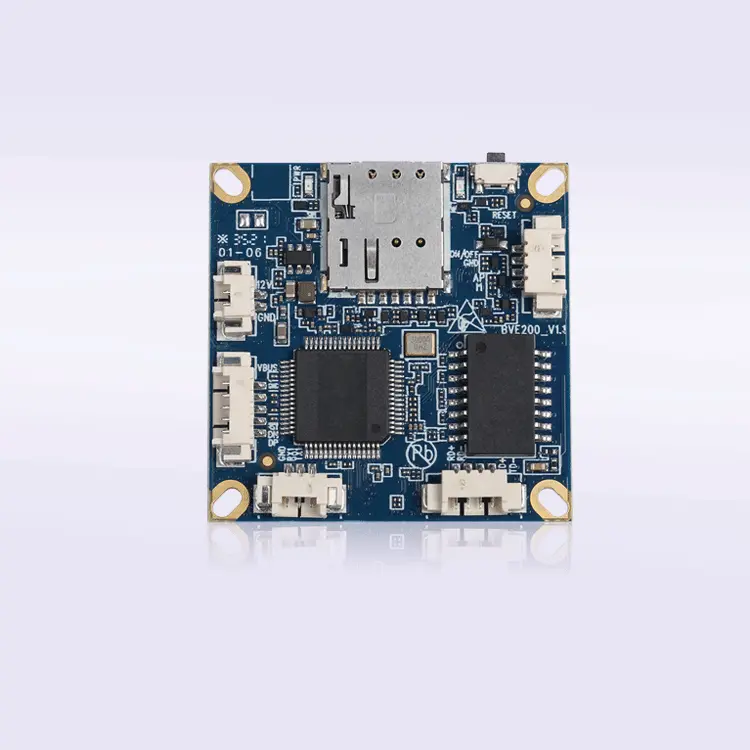

BVE200 Cat 1 LTE IoT Cellular Module

Plug-in IoT Cellular Module
Routing Cat 1 LTE Module
Maximum 10Mbps(DL) 5Mbps(UL)
1* SIM / 1* eSIM / SIM + eSIM Three Optional Modes
Size 38mm (L) × 38mm (W)
Assembly Hole 34mm (L) × 34mm (W)

For product pricing, customization, or other inquiries:

Share to:

Description

BVE200 Cat 1 LTE IoT Cellular Module



Advantage

  • LTE Cat.1 IoT Cellular Module
  • Plug-and-Play
  • USIM, eSIM Dual-card Dual-standby
  • Abundant Peripheral Interfaces
  • Medium-to-High Speed Data Transmission
  • 10/100M Network Port Self-adaptation

Overview

  • BVE200 IoT cellular module is a plug-and-play cat.1 IoT routing component free of SMT and code development offering stable portable wireless connectivity applicable for the rapid realization of IoT application terminals.



  • This IoT cellular module also creatively supports Ethernet port data connection and configures main peripheral interfaces such as USB UART with strong extension capability to match the requirements in diverse application scenarios. Also, the BVE200 IoT cellular module provides much flexibility and ease of integration for downstream IoT solution providers’ application development.



  • Distinctively, BVE200 IoT cellular module supports three optional modes of single SIM / single eSIM / SIM and eSIM dual card dual standby, managing multi-channel and multi-operator backup. So this IoT cellular module can flexibly select operator services corresponding to the spectrum coverage of locations.



  • Due to the combination of performance, security, and flexibility, this BVE200 IoT cellular module is suitable for efficient deployment in more wireless industrial IoT application scenarios demanding low latency and low throughput data communication, for instance, security monitoring, data transmission, industrial DTU, unattended, electricity meters, shared equipment, and smart tracking cards.



Ask A Question




Frequency Bands

China & Southeast Asia Europe & Africa Asia Pacific Middle East America

LTE: B1/3/5/8/38/40/41

WCDMA: B1/8

Inquire

Inquire

Inquire

Inquire



We welcome worldwide wireless communication/telecom operators or IoT project contractors to inquire more on BVE200 IoT cellular module about global frequency band customization, customized UI / Application / Function / Appearance service, etc.




Application

New Energy

  • Charging Pile
  • Smart Grids
  • Solar Monitor

Smart Traffic

  • POC Walkie Talkie
  • POS Mobile Payment
  • Remote Tracker

IoT Terminal

  • DTU/RTU
  • Monitor Terminal
  • Collector Terminal



Scenarios



IoT Business Connection

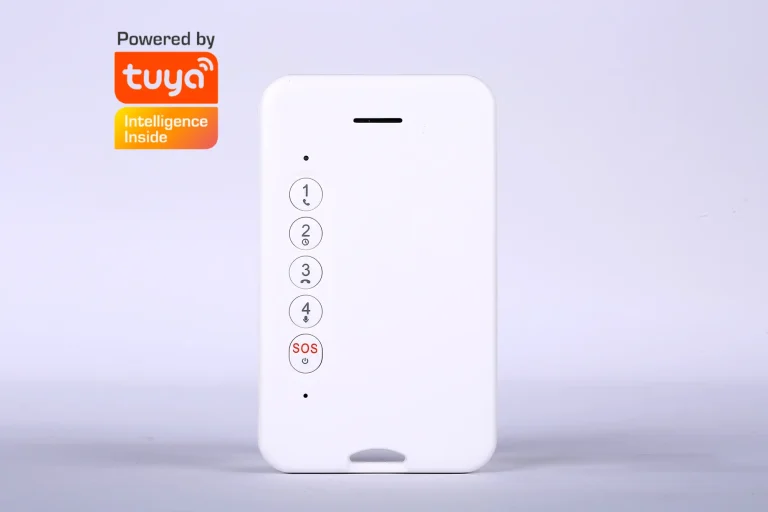

BVE200 IoT Cellular Module to Shared Devices / Unattended

Based on the high-quality coverage network of 4G LTE Cat.1, moderate bandwidth transmission rate, advantage on power consumption and unit cost, and fast connection to the main sensor control board, this plug-and-play BVE200 IoT cellular module can quickly satisfy the Internet data transmission requirements of IoT device in the field of shared economy and unattended scenarios.





BVE200 IoT Cellular Module to Industrial Vision OCR Scene

Combined industrial vision OCR with wireless IPC or built-in sensor detection devices, together with background AI learning, this BVE200 IoT cellular module can fulfill the applications during industrial manufacturing such as nameplate reading, workpiece surface appearance detection, assembly validity detection of sealing ring, size measurement, robotic arm control.

BVE200 IoT cellular module helps the rapid transformation of the Industrial Internet of Things at low cost and power consumption.

Industrial Vision OCR





Wireless Industrial Router

BVE200 IoT Cellular Module to Wireless Industrial Router / DTU / RTU

To develop the IoT devices, you may just supplement a power supply and interface expansion board to test and finish the customized IoT device quickly, such as a wireless industrial router, DTU, RTU, etc.





BVE200 IoT Cellular Module to MBB Terminal

BVE200 IoT cellular module matches the industry-standard peripheral interface and power board, to facilitate the evolvement of diversified mobile broadband devices like 4G CPE, battery MiFi, and WiFi hotspot UFi with a low threshold.

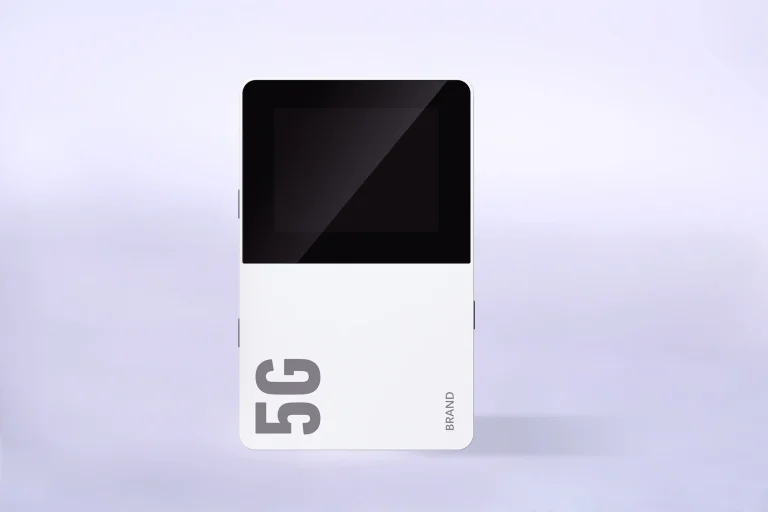

Portable MBB Terminal
