BVE26 4G Cat 1 LTE IoT Module

Plug-and-play LTE IoT Module
4G Cat 1 LTE Module
Maximum 10Mbps(DL) 5Mbps(UL)
BT 2402MHz-2483MHz
Size 38mm (L) × 38mm (W)
Assembly Hole 34mm (L) × 34mm (W)

For product pricing, customization, or other inquiries:

Share to:

Description

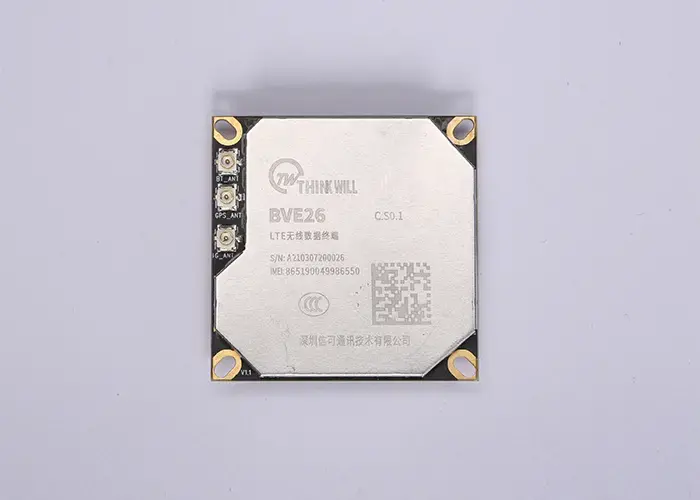

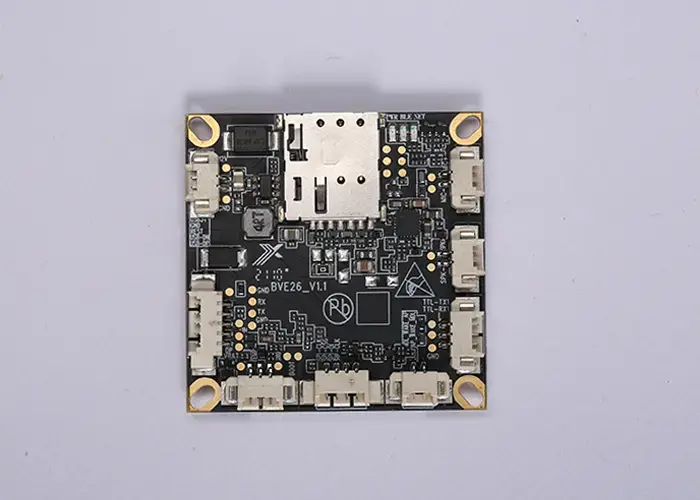

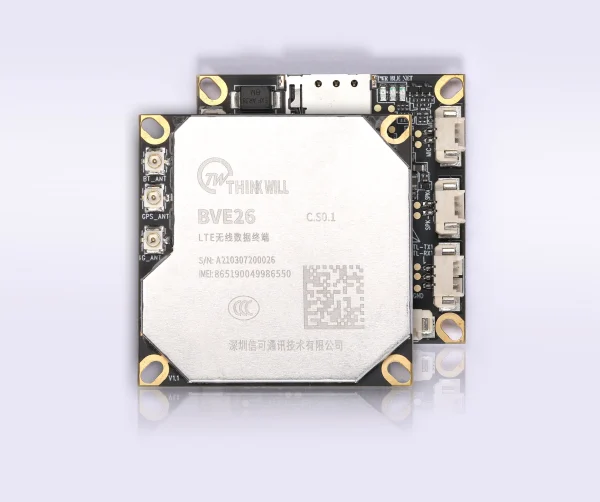

BVE26 4G Cat 1 LTE IoT Module



Advantage

  • Plug and Play
  • 34mm x 34mm Mounting Hole for IPC Industry
  • Integrated LTE, BT, Audio, and GPS Technology
  • Standard Connectors (USB / UART / USIM / Audio / GPIO…)
  • Network Protocols (MQTT/TCP/UDP…)

Overview

  • BVE26 is a plug-and-play multi-function 4G Cat 1 LTE IoT module providing stable cellular wireless access for diverse IoT terminals such as IP camera routers, shared devices, and location trackers.



  • This LTE IoT module ingeniously integrates BT, GPS, and audio interfaces to serve audio and battery charging functions and retains the regular USB & UART of the IPC router module to satisfy various M2M, and IoT application scenarios such as mobile POS, security alarm, IP broadcast, speech robot. BVE26 LTE IoT module is also suitable for short-distance communication networking, battery charging, voice broadcast, GNSS positioning, etc. wireless data transmission industries.



Ask A Question




Frequency Bands

China & Southeast Asia Europe & Africa Asia Pacific Middle East America

LTE: B1/3/5/8/38/40/41

WCDMA: B1/8

Inquire

Inquire

Inquire

Inquire



We welcome worldwide wireless communication/telecom operators or IoT project contractors to inquire more on BVE26 LTE IoT module about global frequency band customization, customized UI / Application / Function / Appearance service, etc.




Application

Life & Healthcare

  • Smart Home Appliances
  • Wearable Devices
  • Smart Tracking Cards

Monitor

  • Alarm
  • IP Broadcast
  • Asset Protection

New Energy

  • Charging Park
  • Smart Grids
  • Solar Panels



Scenarios



CCTV Security Camera

BVE26 LTE IoT Module for Wireless IPC Deployment

BVE26 LTE IoT module supports network connection, data collection, and remote control for security cameras under low power consumption and low-to-medium speed transmission. So the security cameras can stay online and work for a longer time for real-time video monitoring, continuous data transmission to a server or cloud, remote access, monitoring, and management.





BVE26 LTE IoT Module for Industrial Vision OCR Application

Based on industrial vision OCR combined with wireless IPC, or built-in sensor detection equipment and background AI learning, can realize to help the low-cost and rapid transformation of the Industrial IoT in various scenarios, such as nameplate reading, workpiece surface appearance inspection, sealing ring assembly effectiveness detection, and size measurement (workpiece, robotic arm control)

Industrial Vision OCR





Data Terminal Unit

BVE26 LTE IoT Module for Wireless Industrial Router / DTU / RTU Development

Built-in WIFI & Ethernet: a variety of industry standard connector interfaces,  only match with a simple power and interface expansion board, so that realize the customized various terminals quickly, such as a wireless industrial router, DTU, RTU, etc.





BVE26 LTE IoT Module for Smart Road Traffic Safety Warning Detection System

Based on BVE26 extended sensor access box or single board is directly connected to traditional road traffic safety facilities or sensors, so that traditionally isolated devices can be changed to the online versions in seconds, to realize an integrated industry of holographic digitization, networking of things, and the control coordination of infrastructure.

Smart Road Traffic Safety
