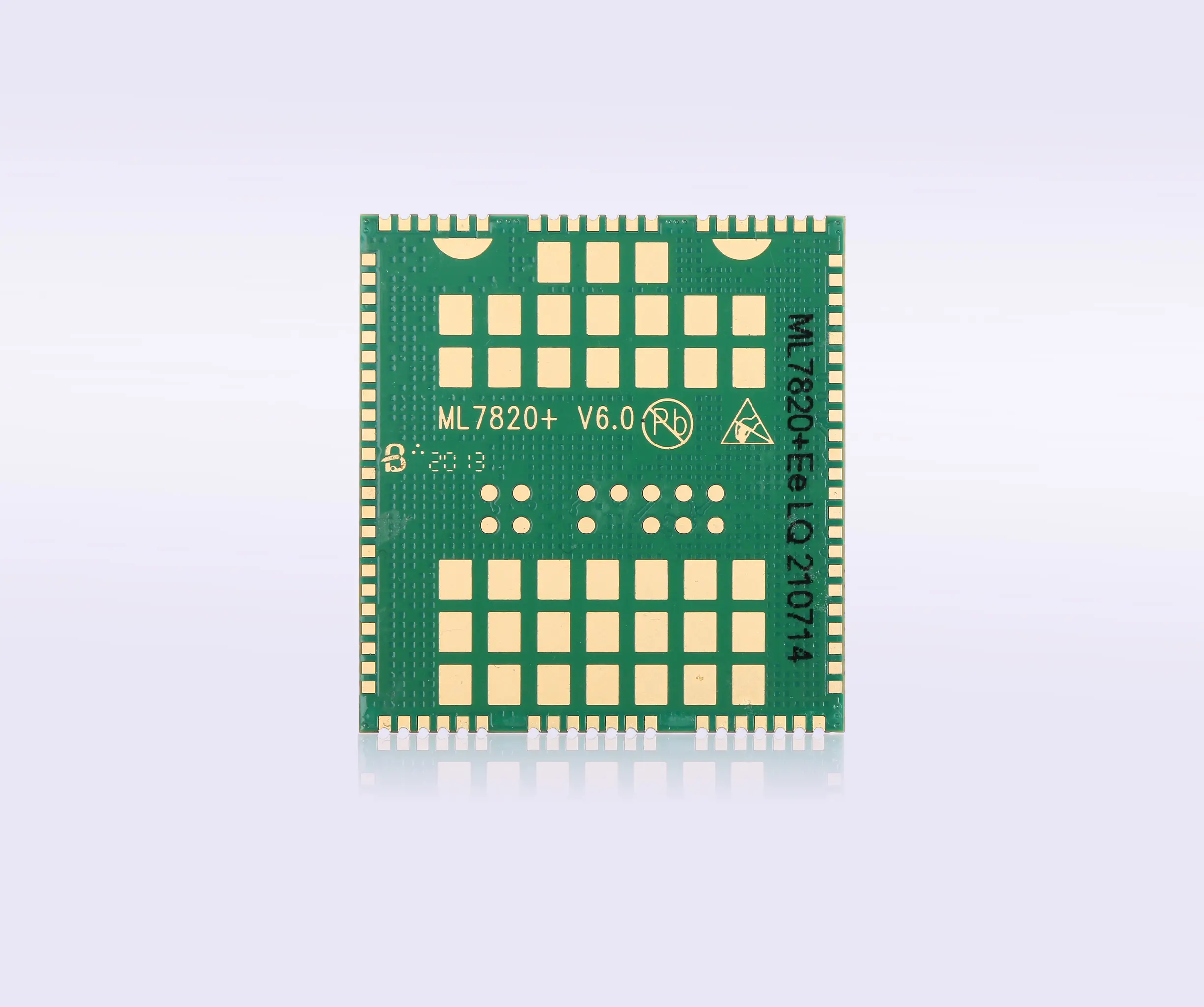

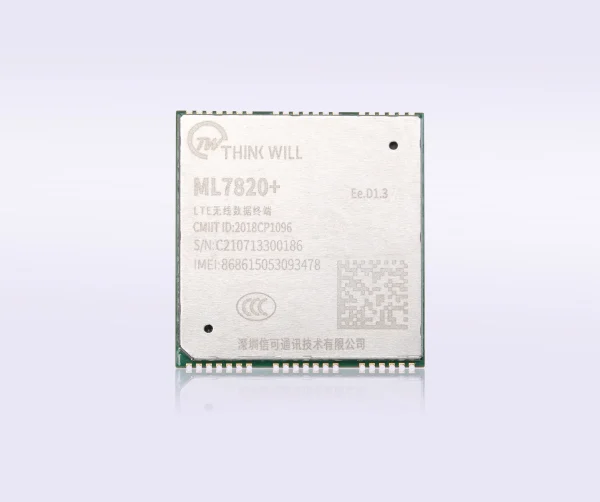

ML7820+ Cat.4 Cellular IoT WiFi Module

LTE Cat.4 IoT WiFi Module
150Mbps WiFi IoT Cellular Module
FDD-LTE / TDD-LTE / TD-SCDMA / WCDMA / EDGE / GPRS / GSM Network
Downstream Rate 150Mbps / Upstream Rate 50Mbps
LCC + LGA Form Factor 86PINs
Size 30mm * 32mm * 2.6mm

For product pricing, customization, or other inquiries:

Share to:

Description

ML7820+ Cat.4 Cellular IoT WiFi Module



ML7820+ cellular IoT WiFi module is a 4G Cat.4 wireless module via ThinkWill independent research and development, merging multiple communication standards and wireless technologies. The IoT WiFi module supports FDD-LTE, TDD-LTE, HSPA+, HSUPA, WCDMA, TD-SCDMA, EDGE, and GPRS network data connections with rich external interfaces to fulfill high-speed wireless data transmission, Volte, MMS, SMS, and other functions, helping IoT terminals send and receive signals.



ML7820+ cellular IoT WiFi module can be widely used in mobile broadband access, video surveillance, wireless meter reading, handheld terminals, contactless RF smart cards, vehicle equipment, and other products.




Frequency Band

ML7820+ C

ML7820+ CFD

ML7820+ M

ML7820+ MTD

ML7820+ E

ML7820+ EFD

ML7820+ W1

FDD B1/3/5/8

TDD B38/39/40/41

TDS B34/39

WCDMA B1/8

GSM 900/1800

FDD B1/3/5/8

WCDMA B1/8

GSM 900/1800

TDD B38/39/40/41

TDS B34/39

GSM 900/1800

TDD B38/39/40/41

TDS B34/39

FDD B1/3/5/7/8/20

TDD B38/39/40/41

TDS B34/39

WCDMA B1/5/8

GSM 850/900/1800

FDD B1/3/5/7/8/20

WCDMA B1/5/8

GSM 850/900/1800

FDD B1/2/3/5/7/8/28A

TDD B38/39/40/41

TDS B34/39

WCDMA B1/2/5/8

GSM 850/900/1800/1900

Notice

Band40 Frequency Range: 2300~2400MHz

Band41 Frequency Range: 2555~2655MHz
