NET100 LTE Connectivity Wireless IoT Module

LTE Cat.4 Wireless IoT Module
150Mbps WiFi LTE Connectivity Module
FDD-LTE / TDD-LTE / TD-SCDMA / WCDMA Network
Downstream Rate 150Mbps / Upstream Rate 50Mbps
LCC 76PINs; LGA 44PINs
Size 29mm * 32mm * 2.6mm

For product pricing, customization, or other inquiries:

Share to:

Description

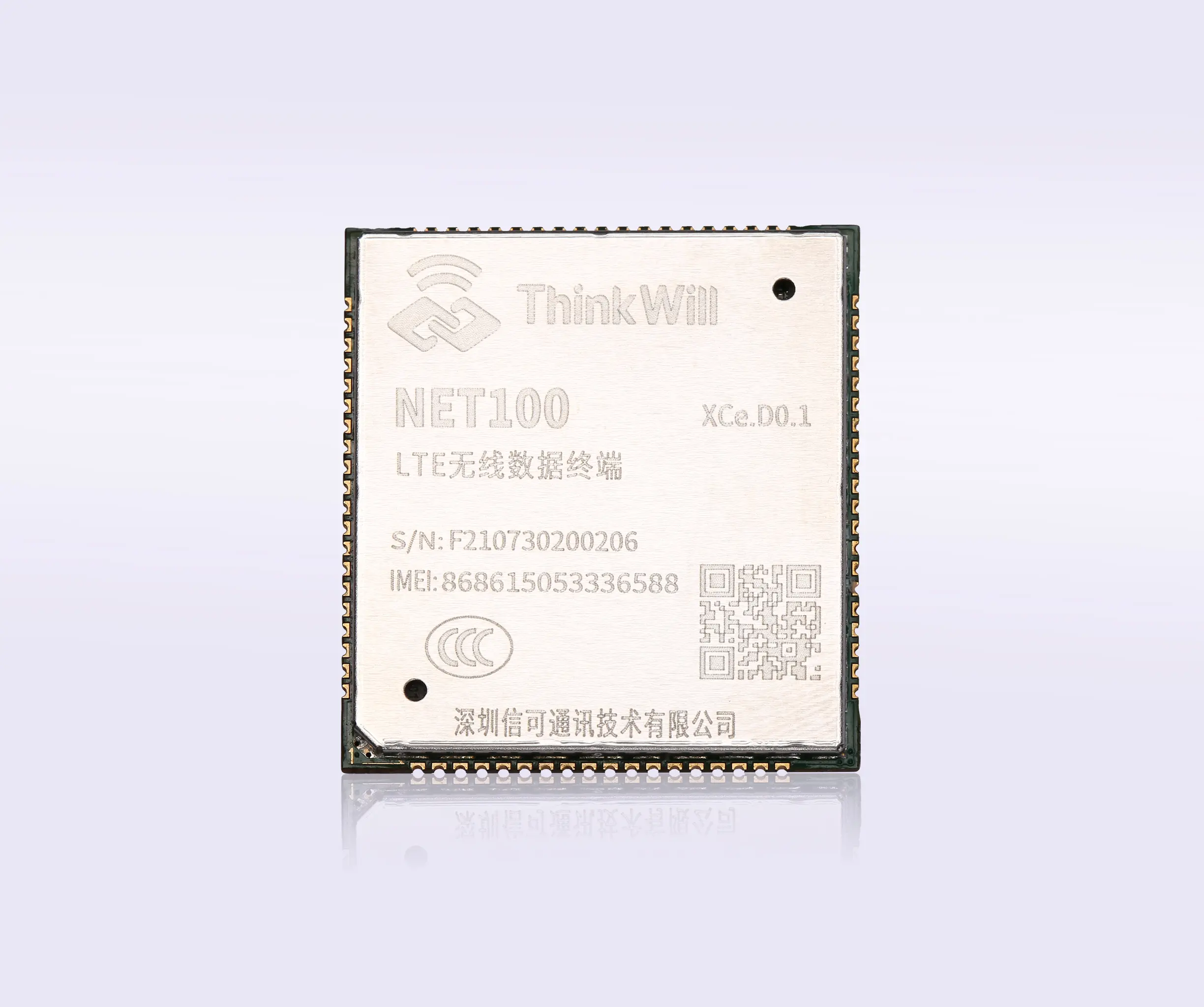

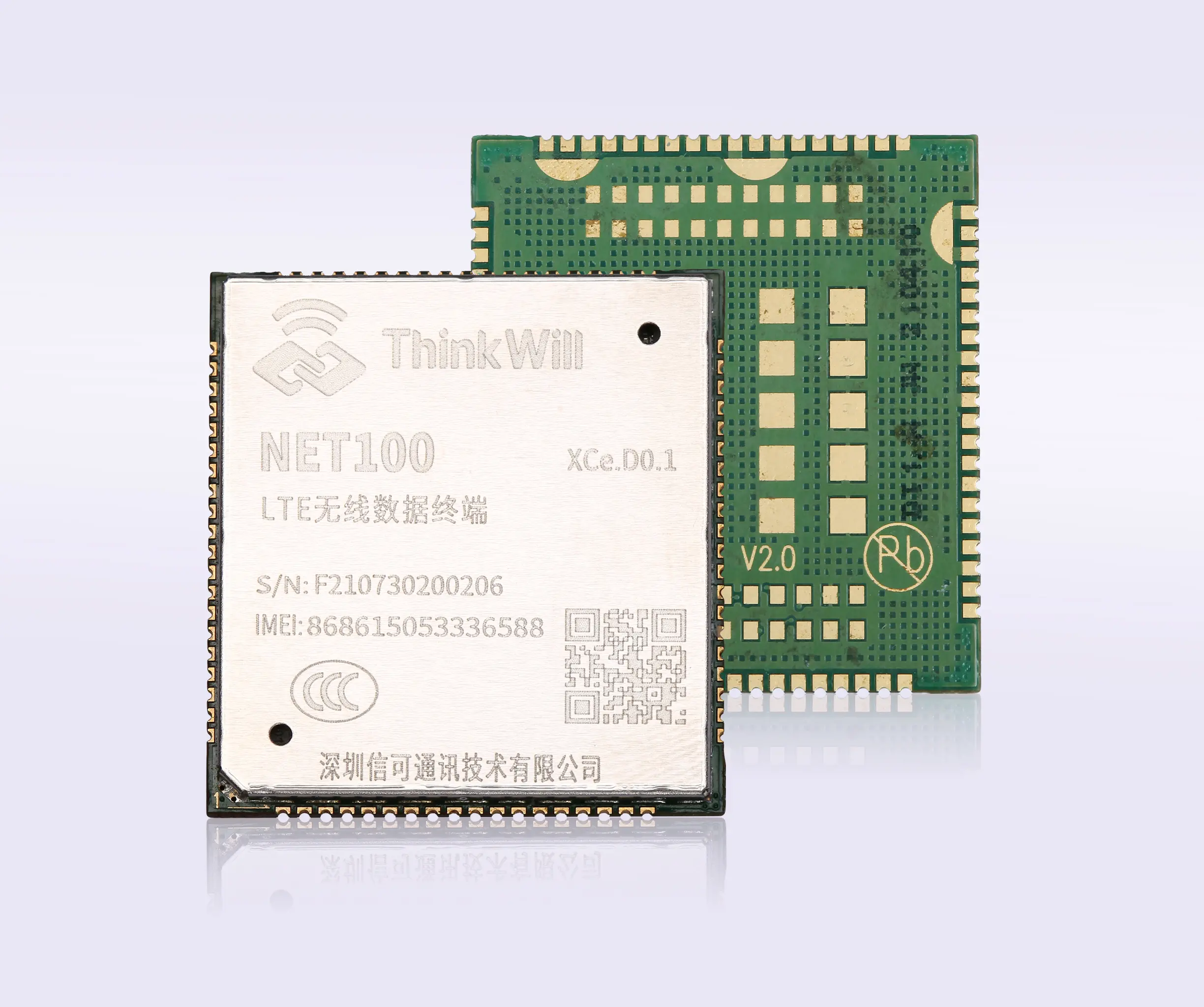

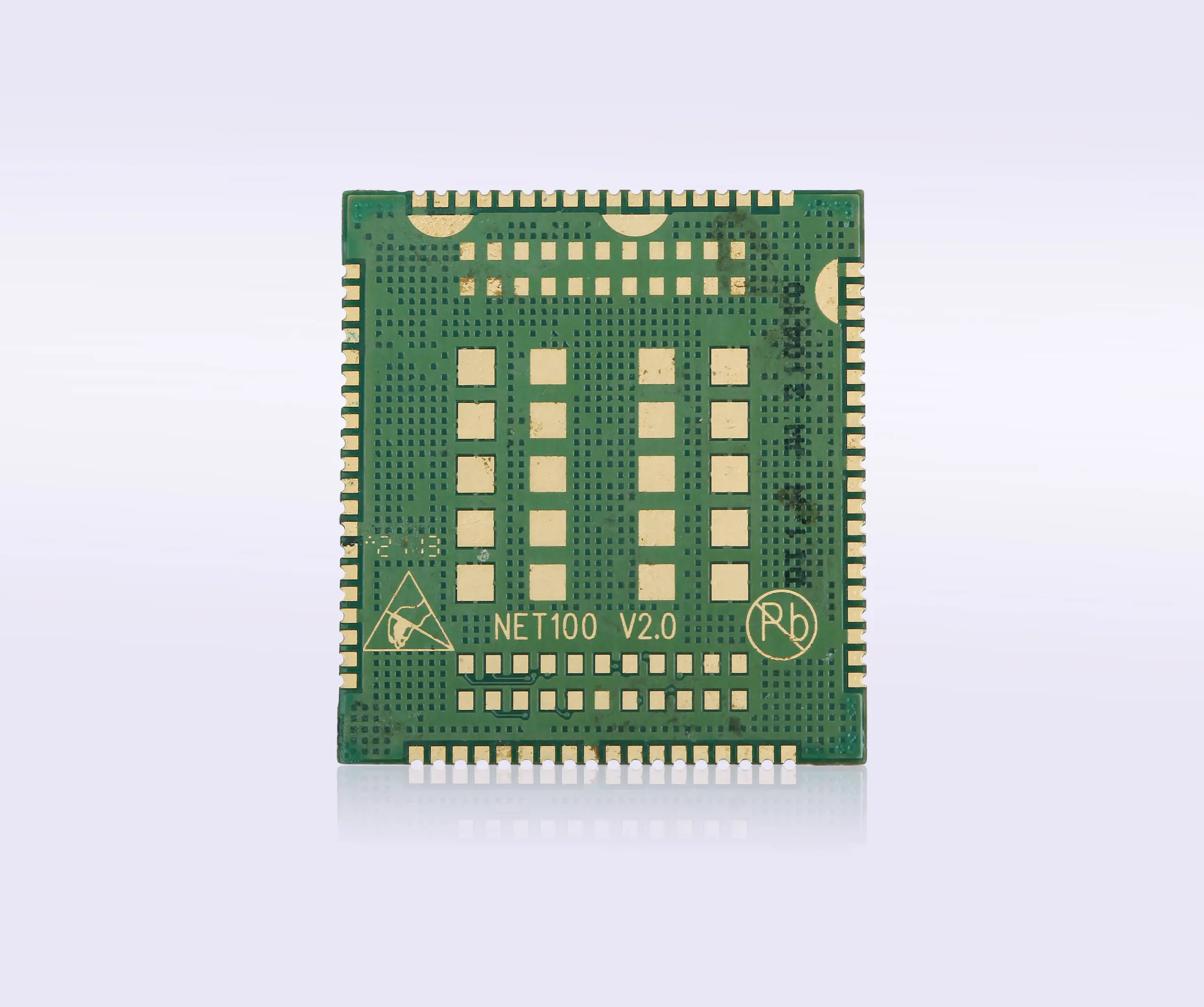

NET100 LTE Connectivity Wireless IoT Module



NET100 wireless IoT module is an innovative routing LTE connectivity module that integrates multiple wireless communication network standards and components of 4G, WiFi, and LAN. Sustaining 4G Cat.4 FDD-LTE/TDD-LTE/TD-SCDMA/WCDMA network, this wireless IoT module also configures a WiFi module inside and an Ethernet interface for peripheral port connection.



The NET100 is an inexpensive LTE routing wireless IoT module adopting an LCC package containing copious external interfaces, which can be widely used in various IoT terminal products such as security monitoring, wireless router, shared equipment, and smart cards that require middle-to-high speed wireless data transmission or routing function to access Ethernet network.




Frequency Bands

NET100-Ce

NET100-MTe

FDD-LTE: B1/3/5/8

TDD-LTE: B34/38/39/40/41

WCDMA: B1/8

TD-SCDMA: B34/39

WiFi: IEEE 802.11 b/g/n

TDD-LTE: B34/38/39/40/41

TD-SCDMA: B34/39

WiFi: IEEE 802.11b/g/n

Notice:

Band40 Frequency Range 2300~2400MHz

Band41 Frequency Range 2555~2655MHz
